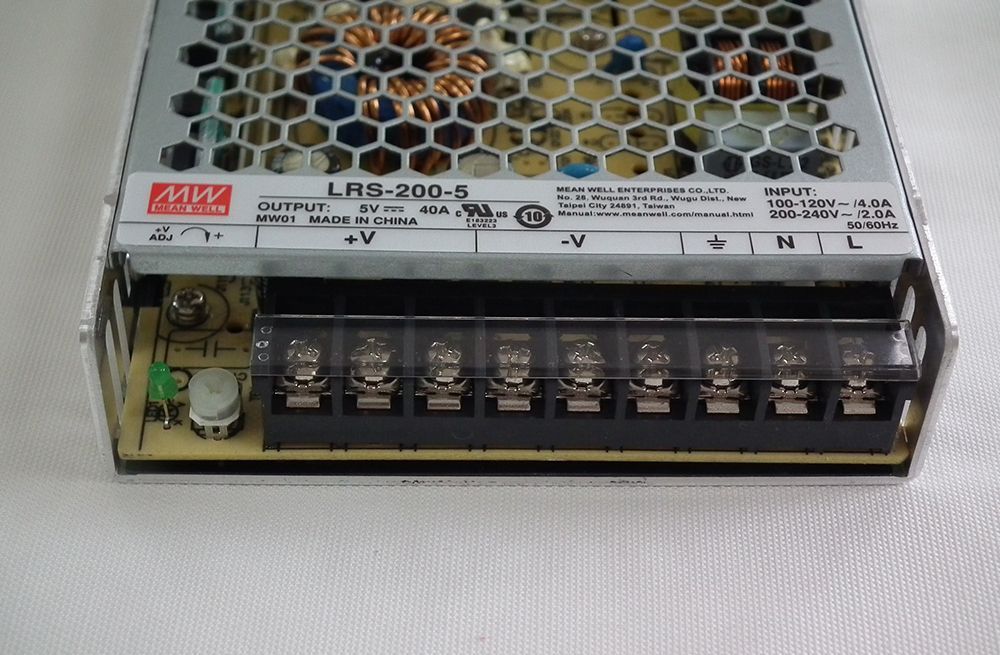

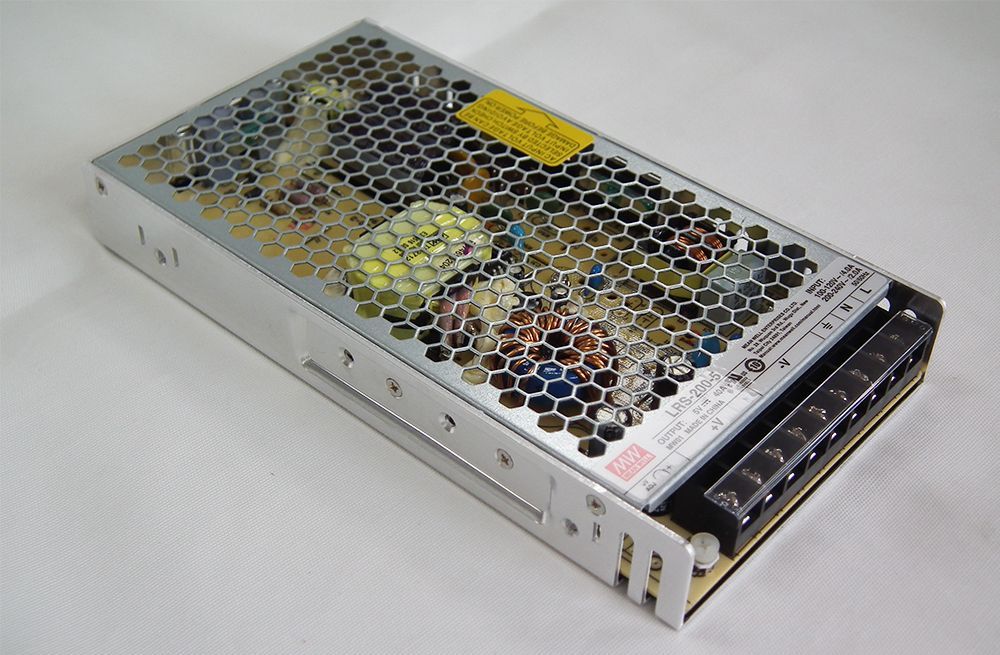

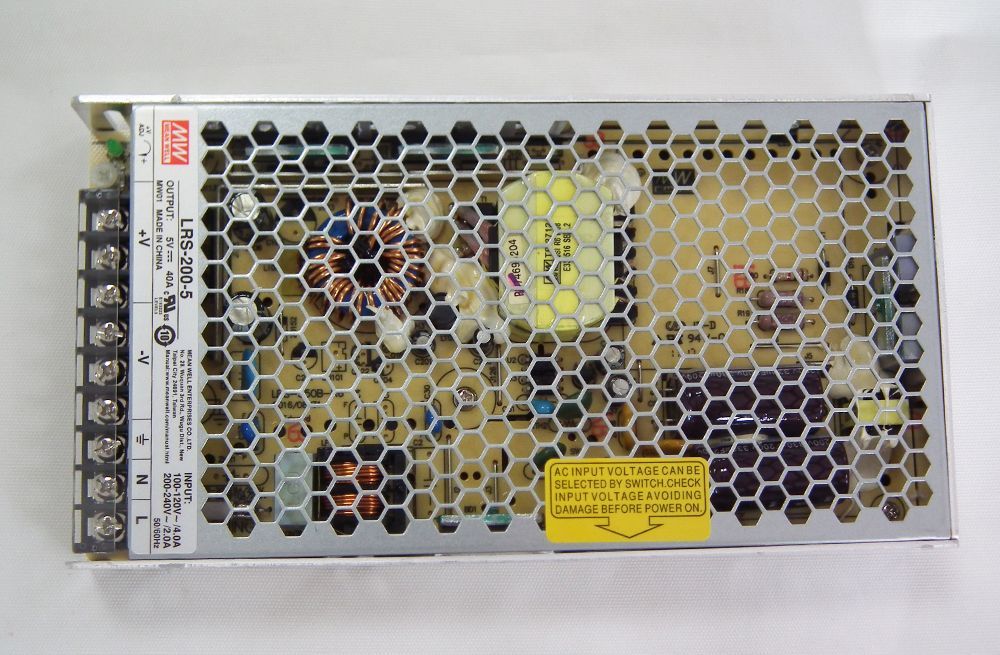

MODEL		LRS-200-5
OUTPUT	DC VOLTAGE	5V
	RATED CURRENT	40A
	CURRENT RANGE	0 ~ 40A
	RATED POWER	200W
	RIPPLE & NOISE (max.) Note.2	150mVp-p
	VOLTAGE ADJ. RANGE	4.5 ~ 5.5V
	VOLTAGE TOLERANCE Note.3	±3.0%
	LINE REGULATION Note.4	±0.5%
	LOAD REGULATION Note.5	±2.0%
	SETUP, RISE TIME	1500ms, 50ms/230VAC 1500ms,50ms/115VAC at full load
	HOLD UP TIME (Typ.)	16ms/230VAC 12ms/115VAC at full load

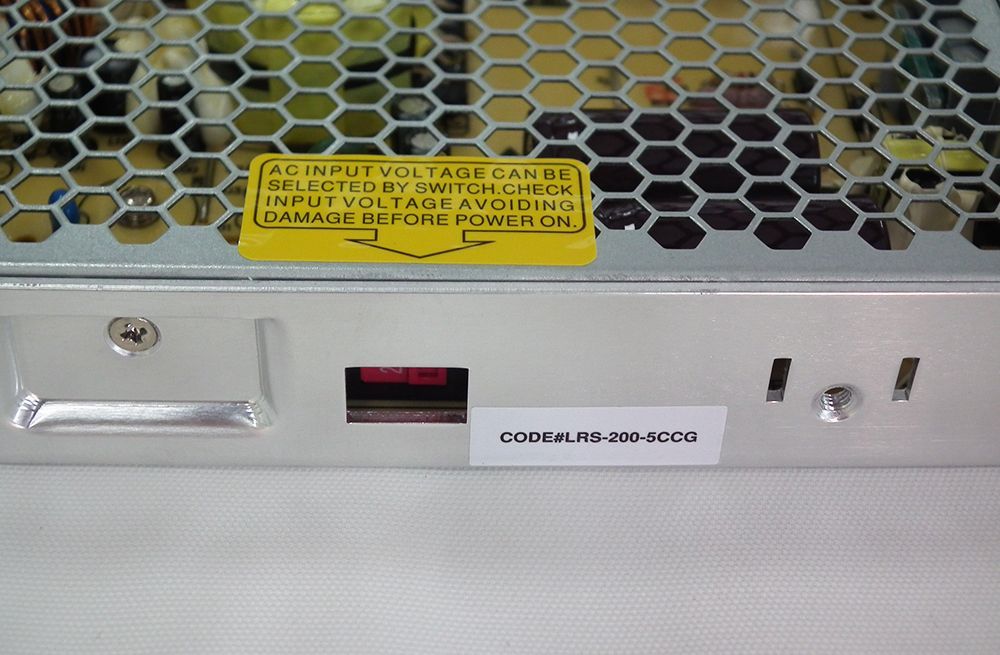

INPUT	VOLTAGE RANGE	90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (switch on 230VAC)
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	87%
	AC CURRENT (Typ.)	4A/115VAC 2.2A/230VAC
	INRUSH CURRENT (Typ.)	COLD STAR 60A/115VAC 60A/230VAC
	LEAKAGE CURRENT	<2mA / 240VAC
PROTECTION	OVER LOAD	110 ~ 140% rated output power
	OVER LOAD	Protection type : Hiccup mode, recovers automatically after fault condition is removed
		5.75 ~ 6.75V
	OVER VOLTAGE	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER TEMPERATURE	Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT	WORKING TEMP.	-25 ~ +70℃ (Refer to "Derating Curve")
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +85℃, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/℃ (0 ~ 50℃)
	VIBRATION	10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY	SAFETY STANDARDS	UL60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25℃/ 70% RH
OTHERS	MTBF	347.5K hrs min. MIL-HDBK-217F (25℃)
	DIMENSION	21511530mm (LWH)
	PACKING	0.66Kg; 15pcs/10.9Kg/0.78CUFT
