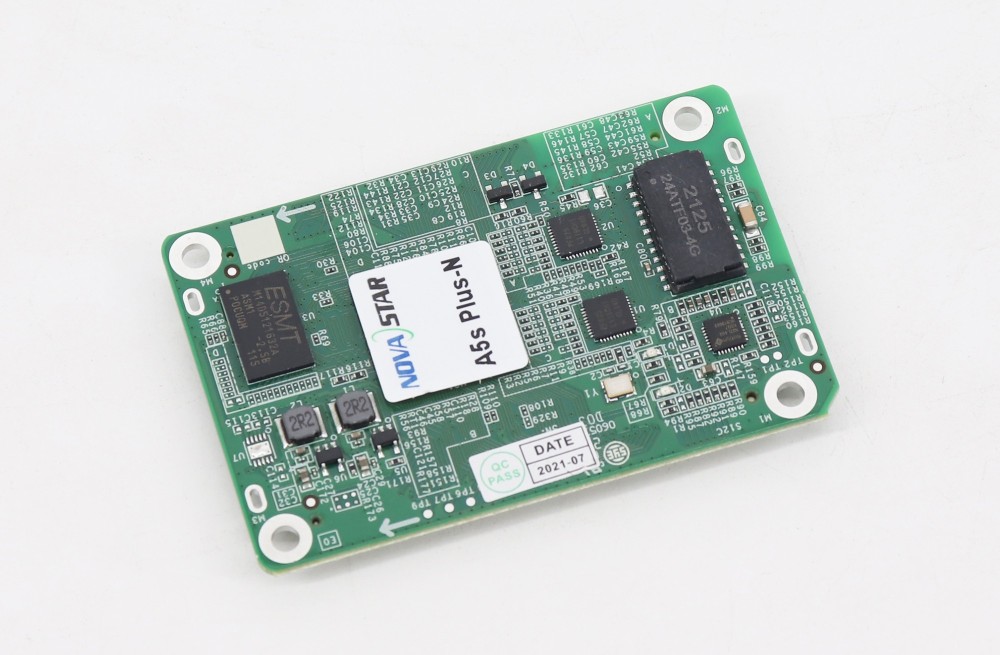

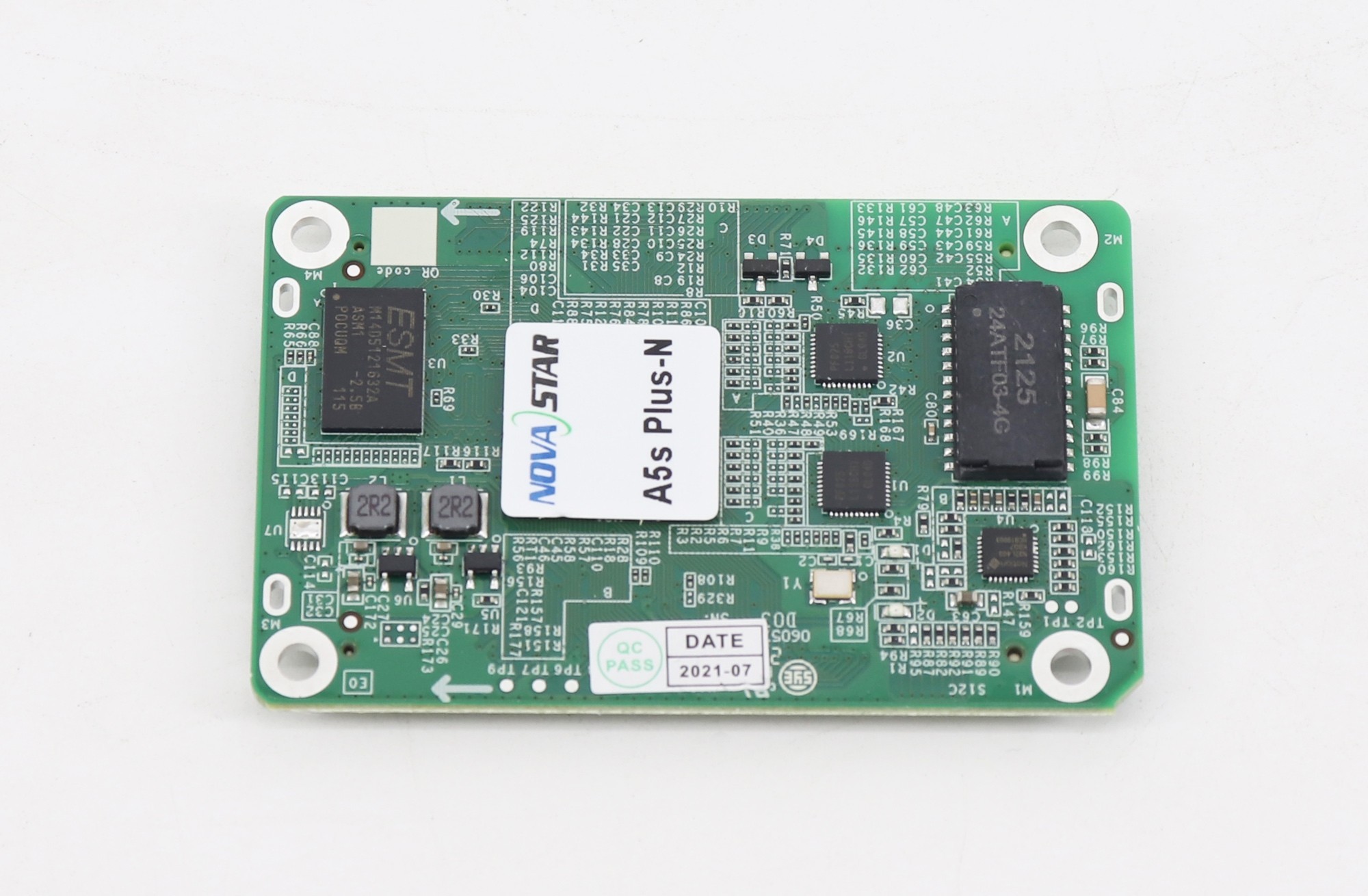

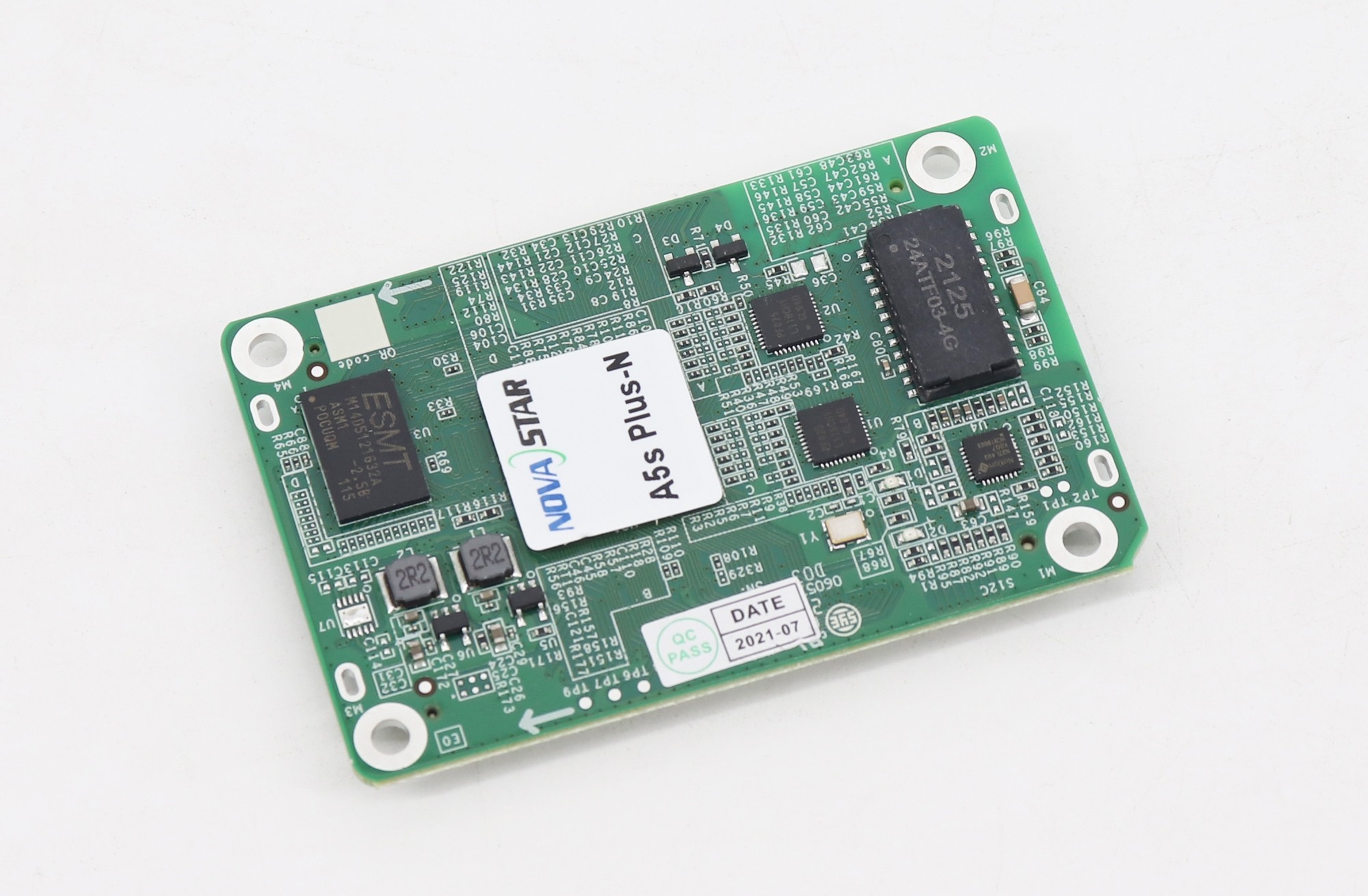

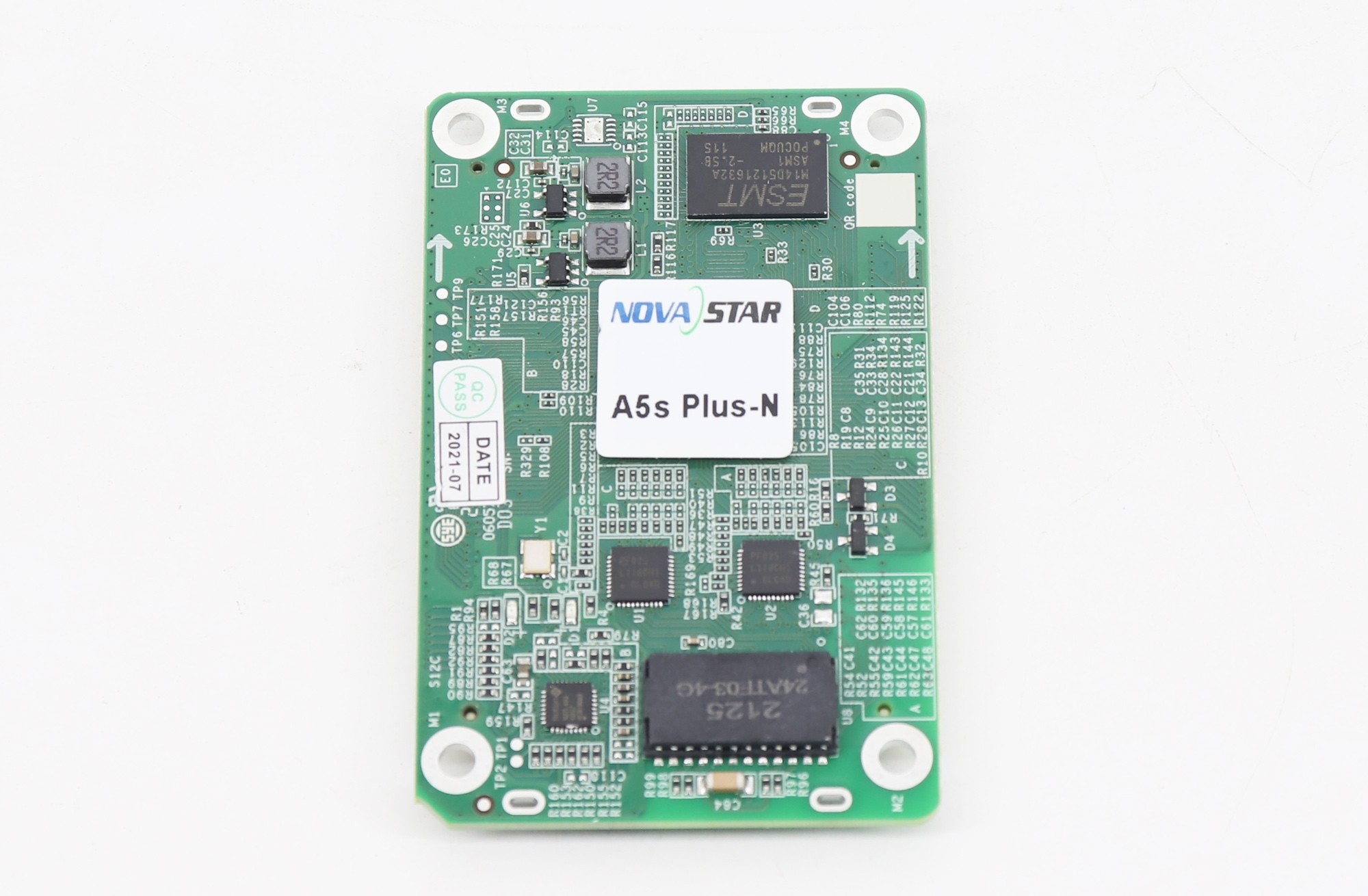

Name: Novastar A5S PLUS-N LED Receiving Card
Brand: Shopping LED Screen controller Video processor power supply
SKU: Novastar-A5SP-N
Price: 13 USD
Availability: InStock

SKU: Novastar-A5SP-N

The A5s Plus-N is a general small receiving card developed by NovaStar. A single A5s Plus-N loads up to 512×384 pixels(NovaLCT V5.3.1 or later required). Supporting color management, 18Bit+, pixel level brightness and chroma calibration, individual Gamma adjustment for RGB, and 3D functions, the A5s Plus-N can greatly improve the display effect and user experience.

$13.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

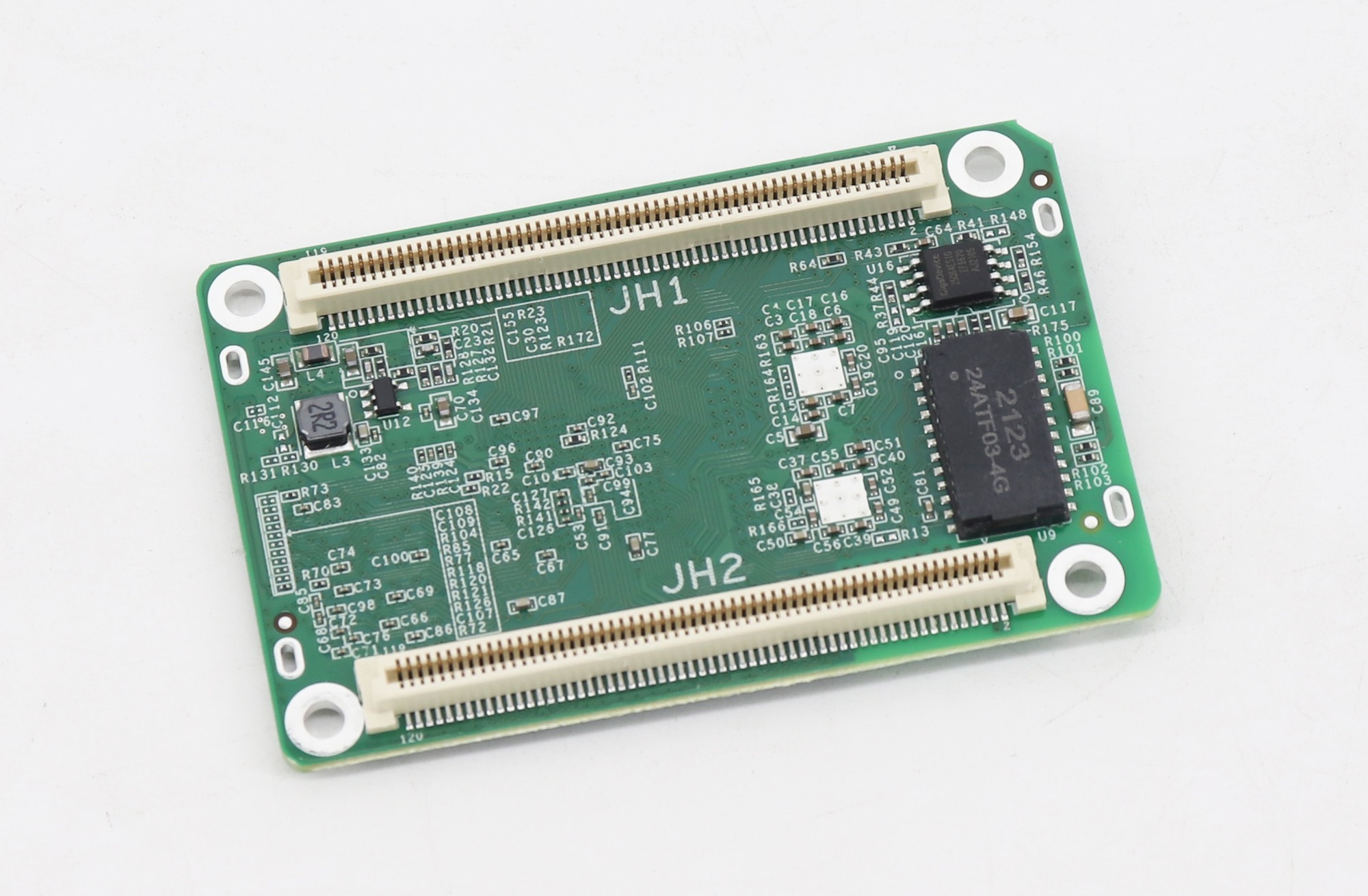

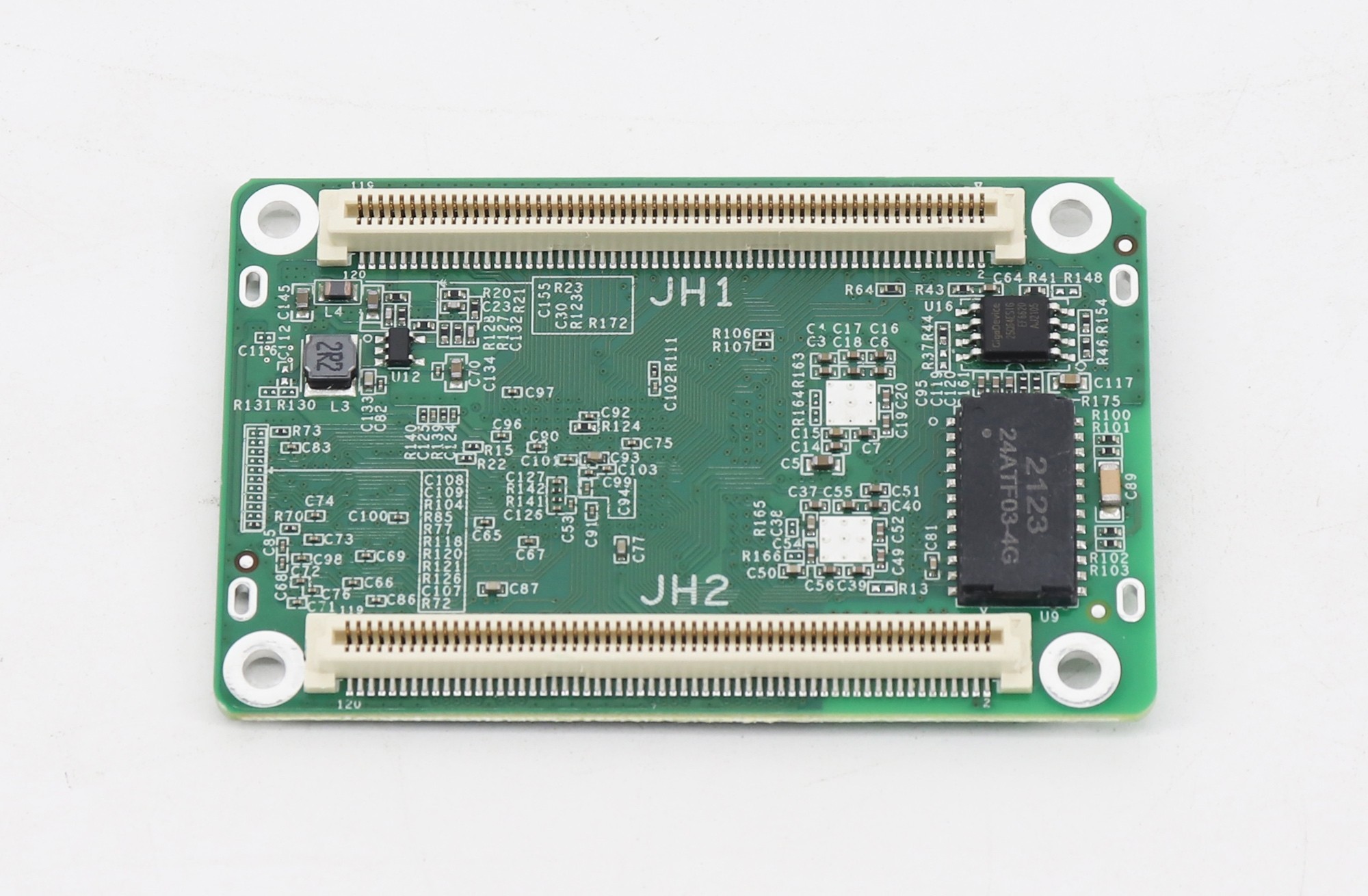

The A5s Plus-N uses high-density connectors for communication to limit the effects of dust and vibration, resulting in high stability. It supports up to 32 groups of parallel RGB data or 64 groups of serial data (expandable to 128 groups of serial data). Its reserved pins allow for custom functions of users. Thanks to its EMC Class B compliant hardware design, the A5s Plus-N has improved electromagnetic compatibility and is suitable to various on-site setups.

Features of Novastar A5S PLUS-N LED Receiving Card

·Color management
Switch the color gamut of the screen between multiple gamuts to enable more precise colors on the screen.

·18Bit+
Improve the LED display grayscale by 4 times to avoid grayscale loss due to low brightness and allow for a smoother image.

·Pixel level brightness and chroma calibration
Working with NovaLCT and NovaCLB, the receiving card supports brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency,allowing for better image quality.

·Quick adjustment of dark or bright lines
The dark or bright lines caused by splicing of cabinets or modules can be adjusted to improve the visual experience. This function is easy to use and the adjustment takes effect immediately.

In NovaLCT V5.2.0 or later, the adjustment can be performed without using or changing the video source.

·Low latency
The latency of video source on the receiving card end can be reduced to 1 frame (only when using modules with driver IC with built-in RAM).

·3D function
Working with the independent controller which supports 3D function, the receiving card supports 3D image output.

·Individual Gamma adjustment for RGB
Working with NovaLCT (V5.2.0 or later) and the independent controller which supports this function, the receiving card supports individual adjustment of red Gamma, green Gamma and blue Gamma, which can effectively control image non-uniformity under low grayscale and white balance offset, allowing for a more realistic image.·Image rotation in 90° increments
The display image can be set to rotate in multiples of 90° (0°/90°/180°/270°).

Specification Download

Novastar A5S PLUS-N LED Receiving Card Specification
