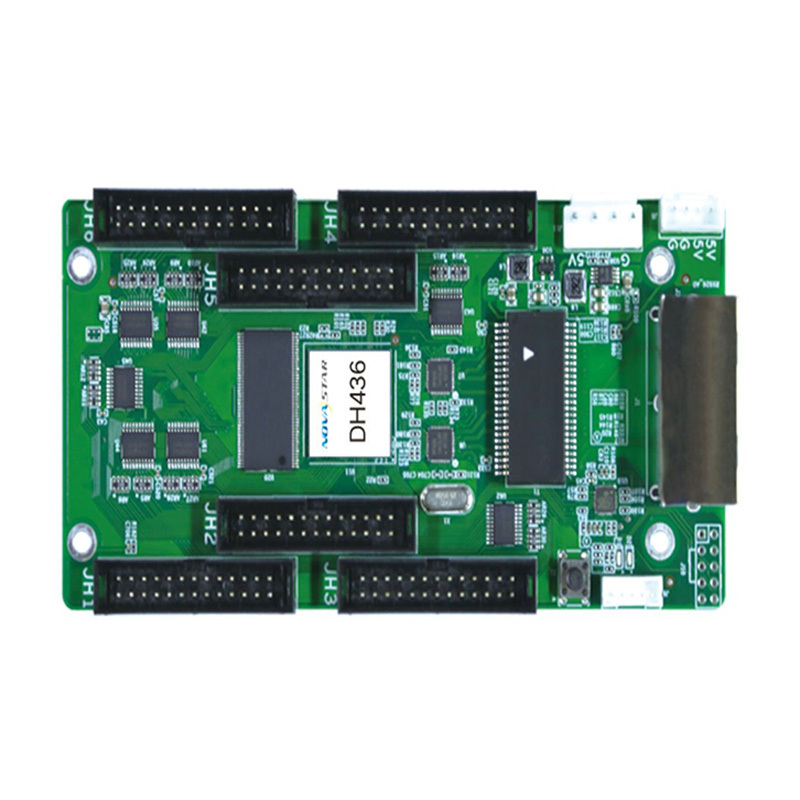

This DH436 receiving card is another highly reliable and efficiently serving small pitch led receiving card. Unlike the previous model, the working and features of this DH436 assure a more advanced and well-managed graphical control of your led display screen.
With the presence of 2 sets of RGB groups and pixels of up to 512 x 256, this receiving card creates more advanced and quality graphical results. Other than that, to add a lot more stability and extreme reliability to this receiving card, this model comes with 6 HUB320 interfaces of (26pin).
Additionally, the easy to maintain, operate, and stabilizing hardware and software design of this DH436 receiving card, you can make use of it for a variety of LED displays – without facing any limitations.
Lastly, with the presence of all the extra and necessary supporting features like mapping function, light on Chroma correction, firmware program and configuration parameter read back, 3D functioning, temperature and voltage monitoring, and many more.
With NovaLCT and NovCLB, the brightness of each light point is corrected to make the brightness of the entire screen consistent and improve the display quality
Quick light and dark line adjustment
Quickly adjust the light and dark lines on NovaLCT to quickly solve the light and dark lines on the display caused by the splicing of cabinets and modules. The adjustment will take effect immediately and is simple and easy to use.
3D function
With the independent main control supporting 3 functions, enable the 3 function on the operation panel of NovaLCT or independent main control, and set 3D parameters to make the screen display 3D effect.
Mapping function
After the Mappimg function is enabled on NovaLCT, the receiving card number and network port information will be displayed on the target cabinet, and the receiving card location and wiring method can be clearly obtained
RGB independent Gamma adjustment
With the independent master control and NovaLCT that support RGB independent Gamma adjustment, by adjusting the Gamma values of the RGB three colors separately, Section can effectively control the low gray unevenness of the display, white balance drift and other issues, making the picture more real.
Temperature and voltage detection
Can detect its own temperature and voltage without the need for other peripherals. Can be viewed on NovaLCT
Error monitoring
With NovaLCT, it can detect the network quality between the sending device and the receiving card or between the receiving card and the receiving card, record the number of errors, and assist in troubleshooting.
Firmware read back
On NovaLCT, the firmware program of the receiving card can be read back and saved locally.
Read back configuration parameters
On NovaLCT, the receiving card configuration parameters can be read back and saved locally.
Loop backup
The reliability of the network cascade between the receiving cards is increased through the active and standby redundancy mechanism. In the active-standby cascade line, when one of the lines fails, the other line will work immediately.
Dual program backup
Two application programs are saved when the receiving card leaves the factory to prevent problems such as stuck and self-locking during program update
