2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don't offer technical support or services if you used our LED modules to replace existing old LED modules.

4) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

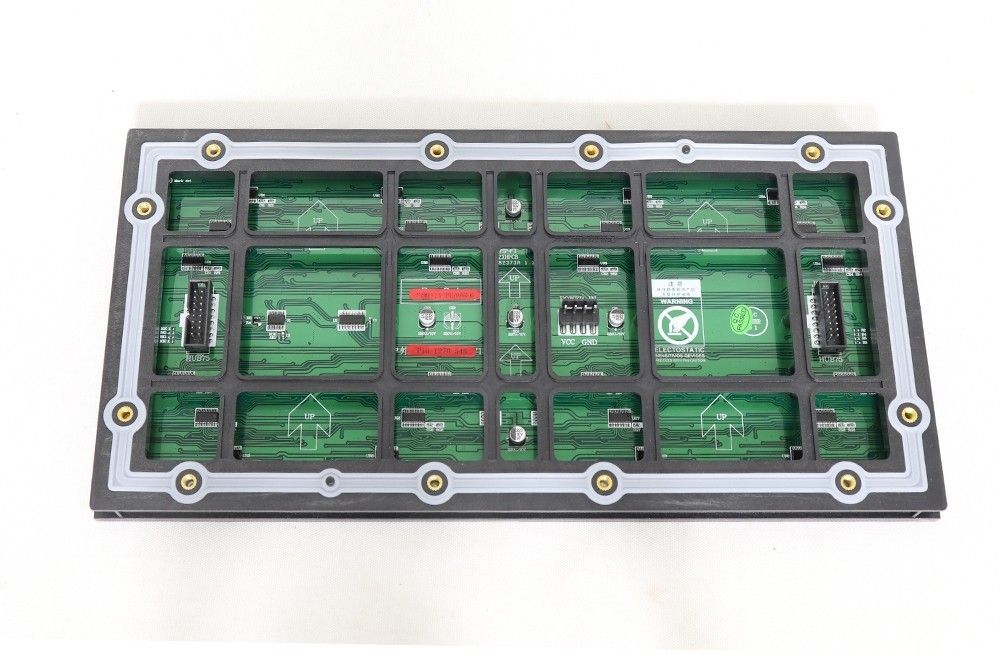

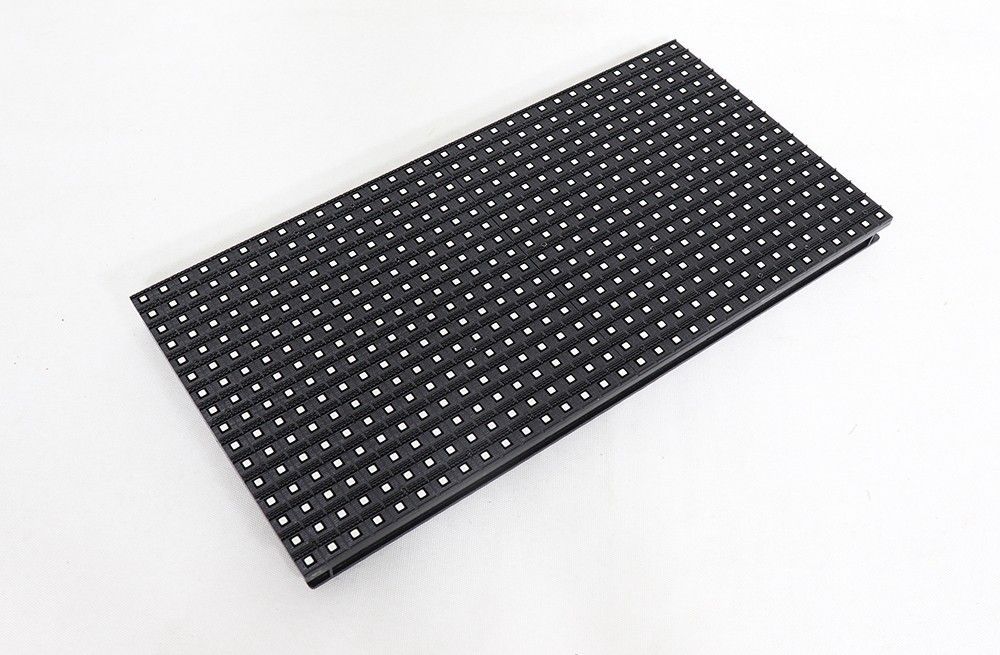

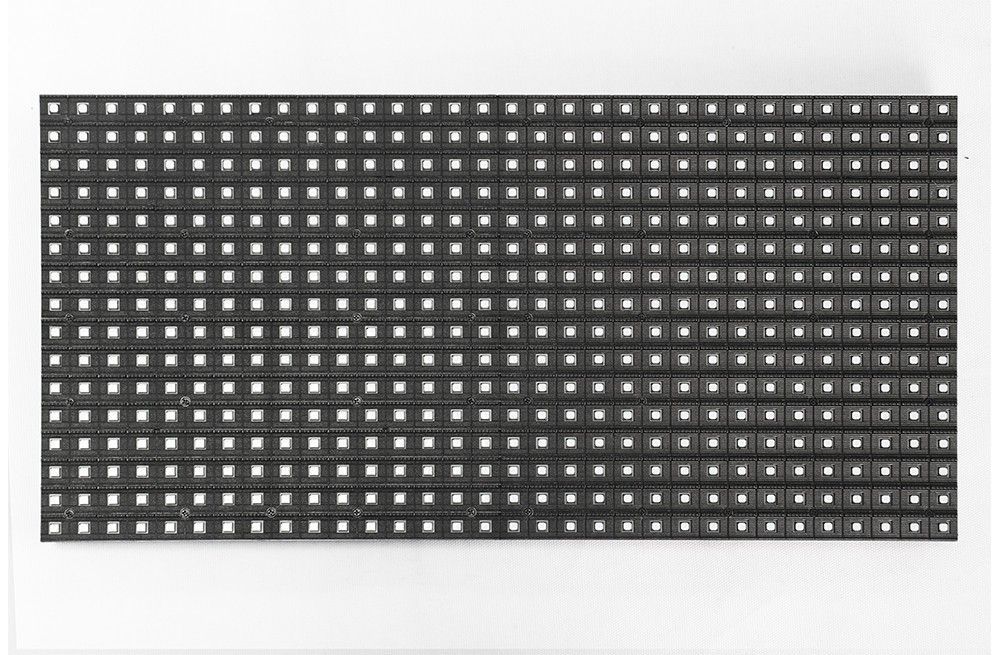

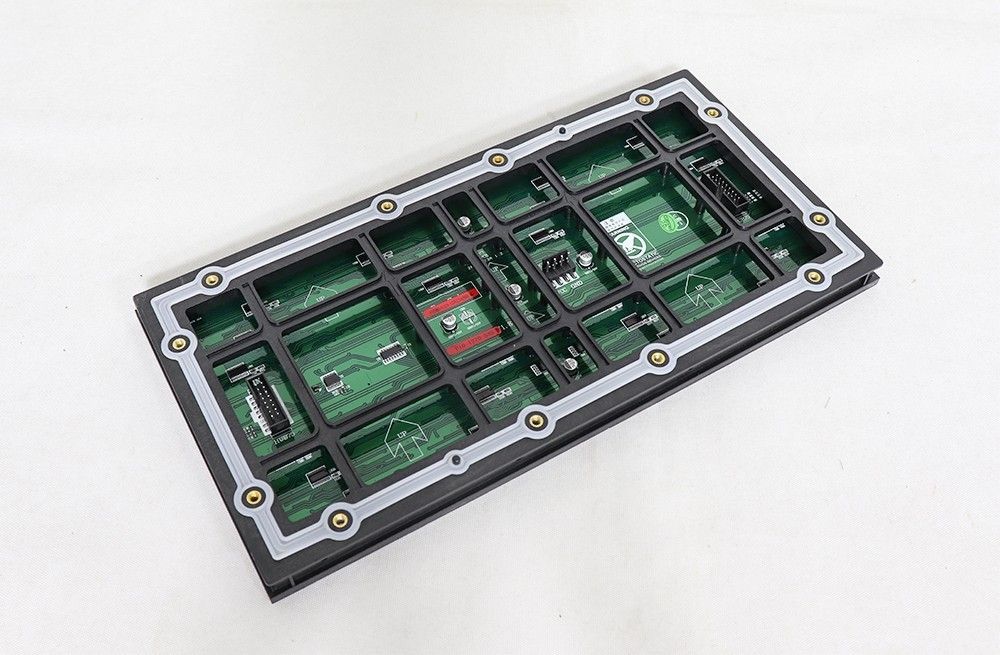

P10 Outdoor SMD3535 1/2 Duty LED Screen Module 32x16 dot Features:

1) Reasonable PCB design, low heat disspation, reliable and steady.

2) New developed mold for the plastic covers, hence, smaller module gaps and better screen flatness.

3) Top quality outdoor SMD3535 LED.

4) LED chip is sorted within 2.5nm wave length and 10% color difference. Narrow wave length range and small color difference make perfect color uniformity and brightness conformity.

5) Exact control technology of brightness ratio of red, green and blue basic colors makes perfect white balance performance.

6) Famous constant current IC, ensuring the consistency and stability of the whole screen.

P10 Outdoor SMD3535 1/2 Duty LED Screen Module 32x16 dot Parameters:

LED Lamp Specification
Color	Package	Intensity		Viewing Angle	Wavelength	Testing Conditions
Red	SMD3535	800-1100mcd		120°	620-625nm	25℃,20mA
Green	SMD3535	1600-2250mcd		120°	515-530nm	25℃,20mA
Blue	SMD3535	350-500mcd		120°	465-475nm	25℃,20mA
Module Parameter
Pixel Pitch			10mm
Pixel Configuration			SMD3535
Density			10,000 pixels/㎡
Module Resolution			32pixel(L) * 16pixel(H)
Module Dimension			320mm(L) * 160mm(H) * 25mm(D)
Driving Mode			Constant current, 1/2 duty
Module Mask			Pure black mask---high contrast screen
Electricity Parameter
Optical Ratings
Brightness			≥7,500 cd/㎡
Viewing Angle			120°(Horizontal); 120°(Vertical)
Best Viewing Distance			≥10m
Gray Grade			14 bits
Display Color			4.4 trillion colors
Brightness Adjustment			100 grades by software or automatically by sensor
Max. Power Consumption			40W
Control System
Frame Frequency			≥60Hz
Refresh Frequency			≥1,920Hz
Input Signal			Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance			100m(Ethernet cable); 20KM(optical fiber cable)
Support VGA Mode			800600, 1024768, 12801024, 16001200
Color Temperature			5000—9300 adjustable
Brightness Correction			Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature			-20～+60 ºC
Storage Temperature			-30～+70 ºC
Working Humidity			10%～90% RH
Lifetime			100,000 hours
MTBF			5000 hours
Continuous Operating Time			≥72 hours
Protection Grade			IP65
Out-of-Control Pixel Rate			≤0.01%

1. Each items not including shipping cost. You can check the shipping cost after you add the goods in the shopping cart.

2. DHL express is the default method. Others express like UPS or Fedex will be adopted only when DHL is not available or not suitable at the destination; If you would like to ship the goods by sea or by air, please contact us in advance.

3. We will ship your order within 2 working days upon receiving payment. We will re-inform you another fastest delivery date if the goods is out of stock.

4. We only ship to the confirmed address from your order information. Please do confirm the delivery address on your account when you pay by PayPal or Credit Card.

5. Shipment time is depends on the carrier and excludes weekends and holidays. Transit time may slow, particularly during the holiday season.

6. Please inform us in advance if you wanna declare lower value on the shipping invoice in order to avoid or minimize the customs tax on your side. If not, we will use the orginal amount as paid.

7. If required, please assist the courier for necessary assistance concerning the customs clearance of the goods locally.

8. Please check the items in front of the courier when they arrive. If the goods are damaged, please try to obtain local courier’s documentary evidence for the breakage, In the meantime, please email us with photos or videos of the packaging and products as soon as possible.

9. If you have not received your shipment within 15 days since payment date, please contact us. We will track the shipment and get back to you ASAP.

10. The products ordered will not enjoy return and warranty if their codes are ripped off.

11. We provide two years warranty for most of our products sold (special terms are subject to final Proforma Invoice.). If there are any defects under normal use during this period, we will fix or replace for free at our factory. Customers only responsible for turn back shipping cost.
