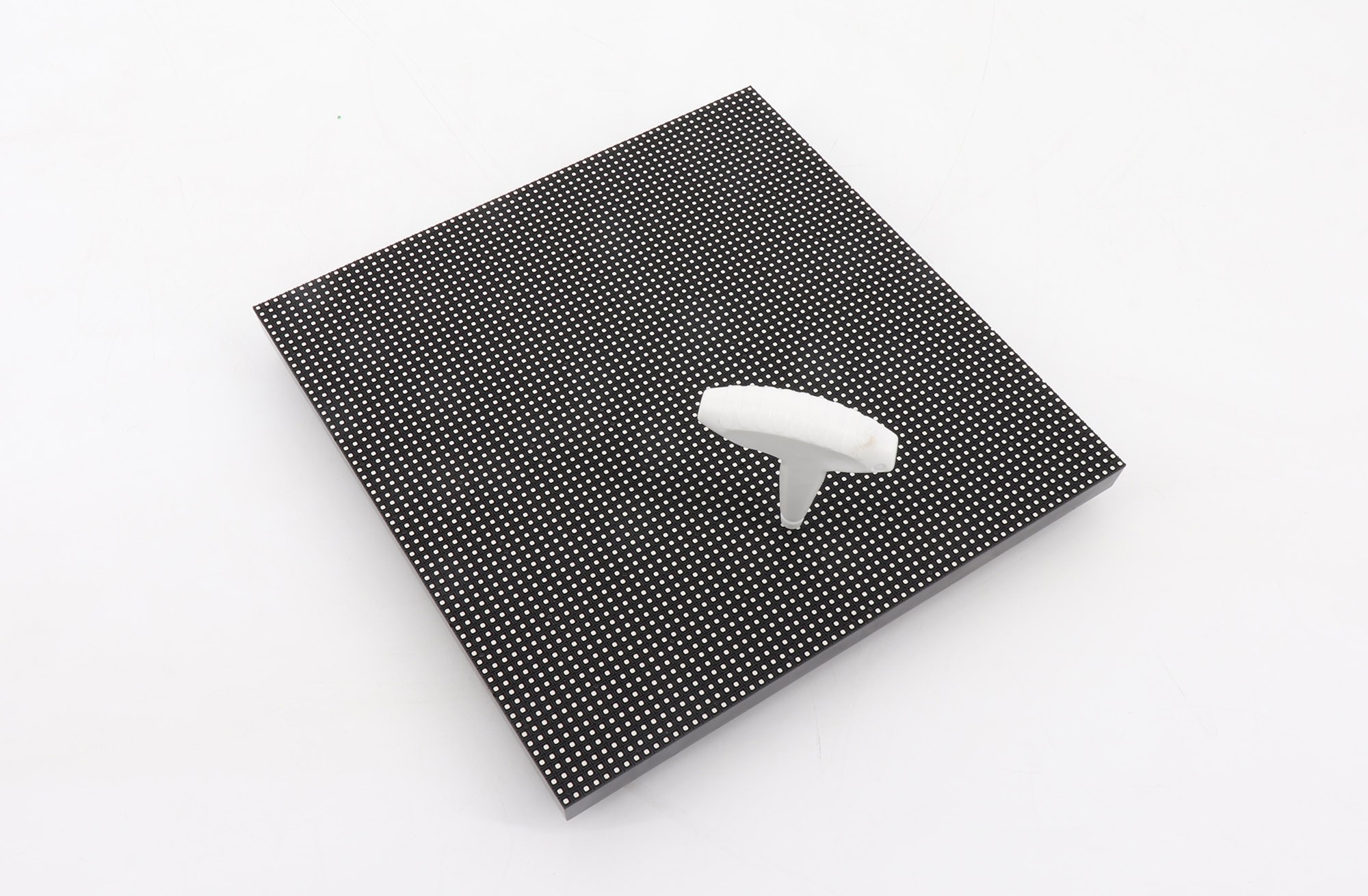

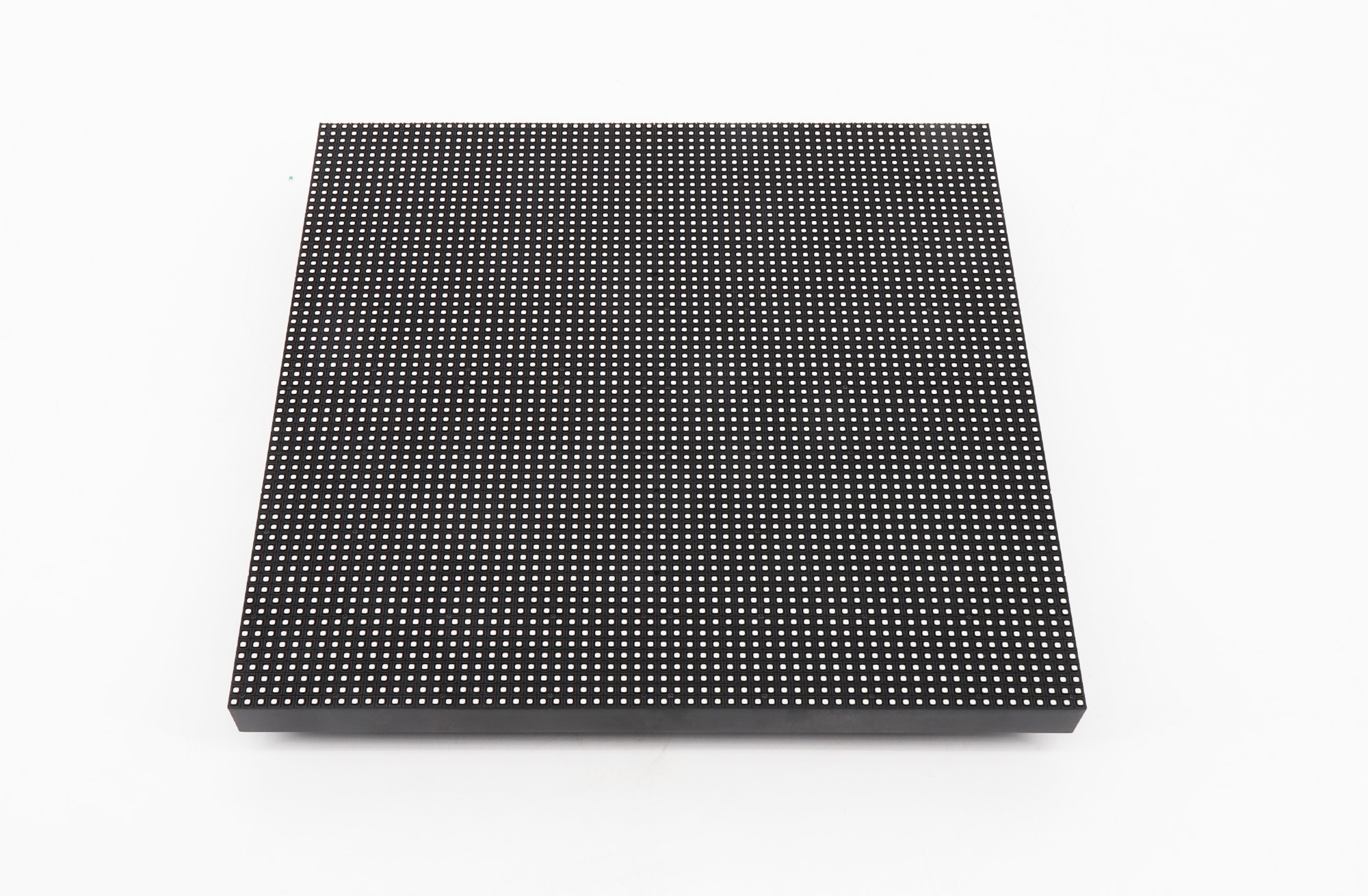

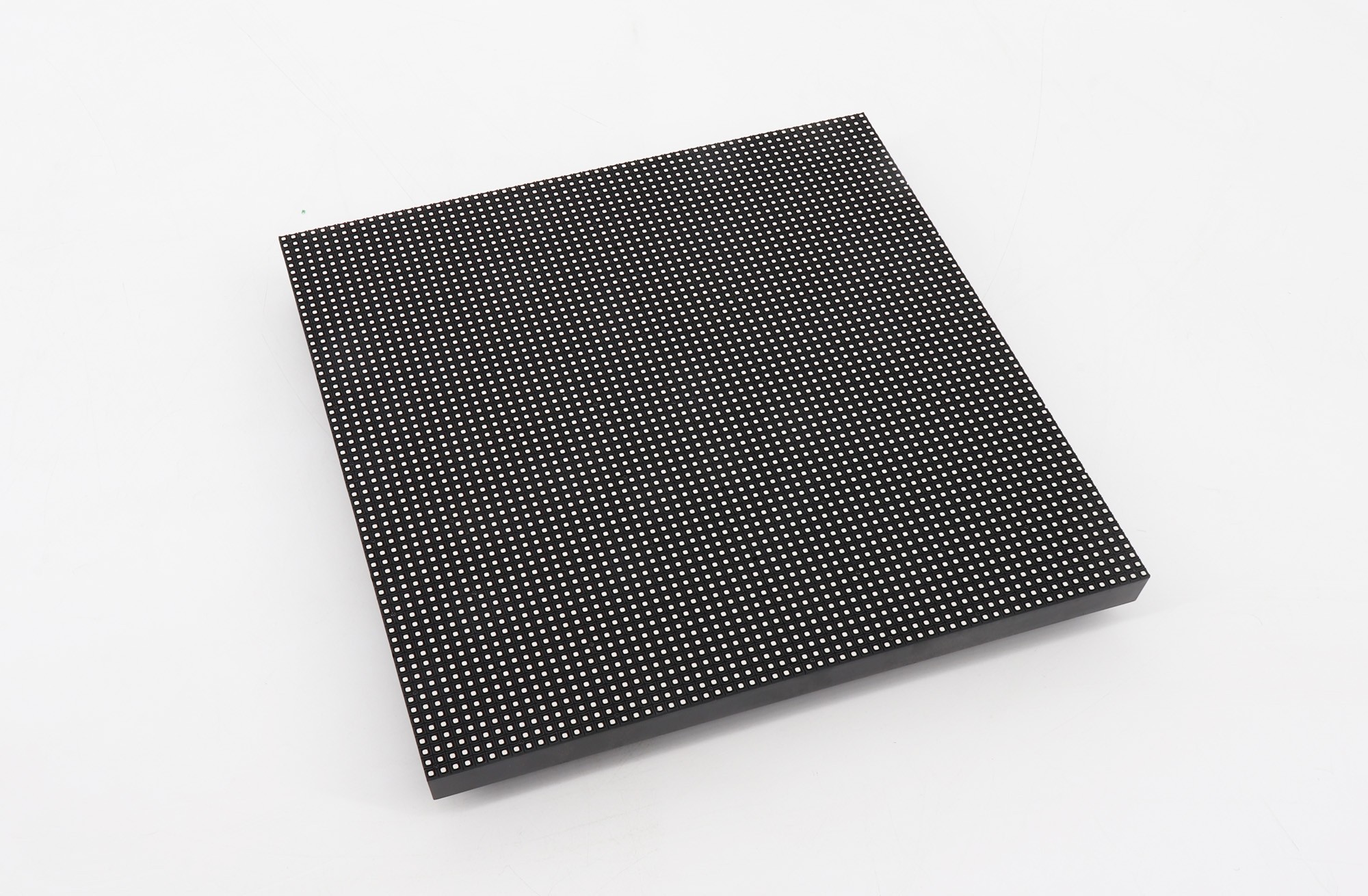

P3.91 Outdoor 250x250 Dual Maintenance LED Display Module

SKU: P3.91-OD8S-SMD1921-64x64

Model:P3.91-OD8S-SMD1921-64x64

Brightness:≥6500CD/㎡

Power consumption:40W

Viewing angle:H:120°,V:120°

Product description: P3.91 Outdoor, reliable Nationstar SMD1921, high resolution outdoor front service LED display solution.

$47.30

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Shipping Policy
Why Us

Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness&color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Tariff:our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

Features of P3.91 Outdoor 250x250 Dual Maintenance LED Display Module:

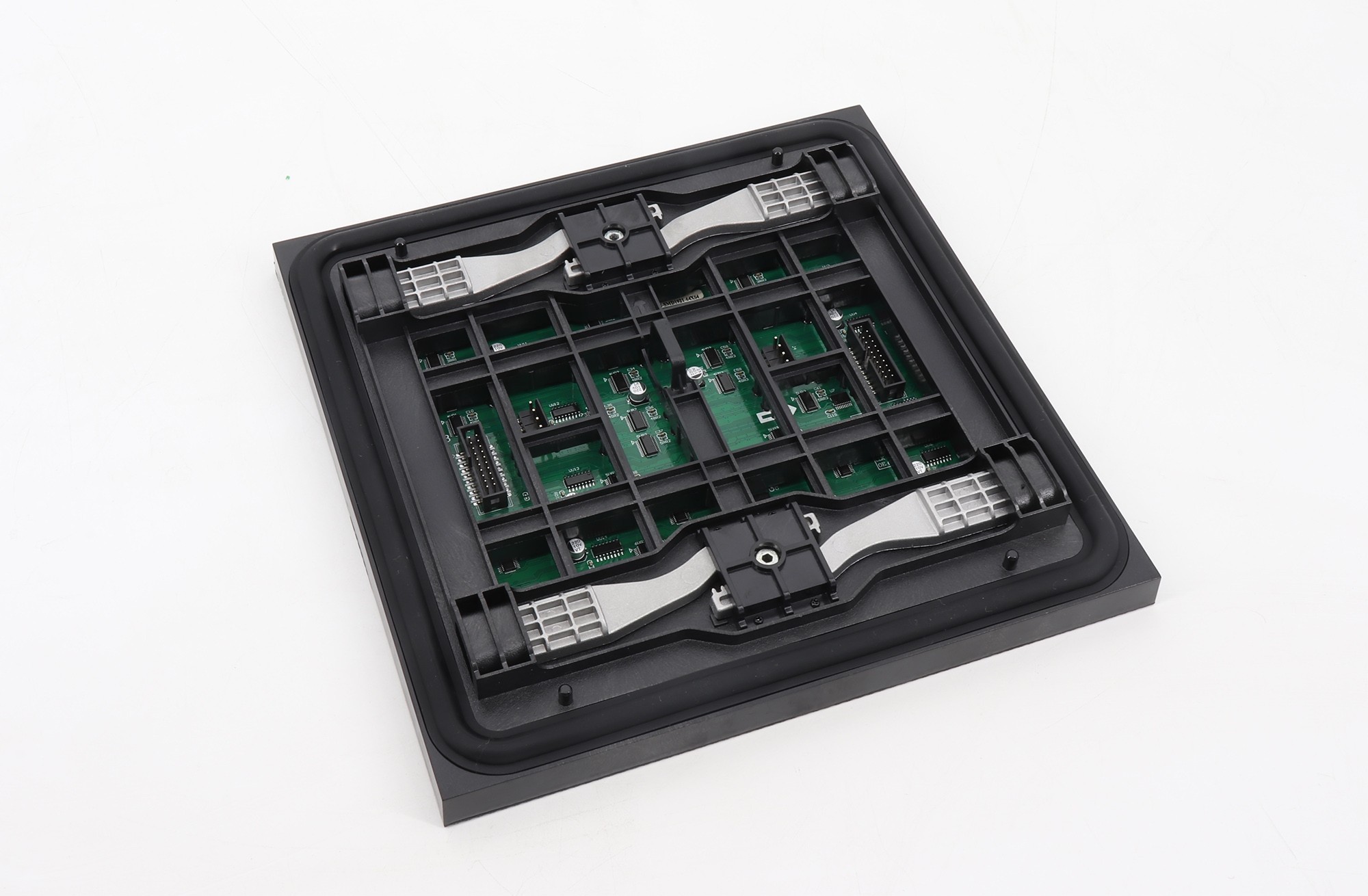

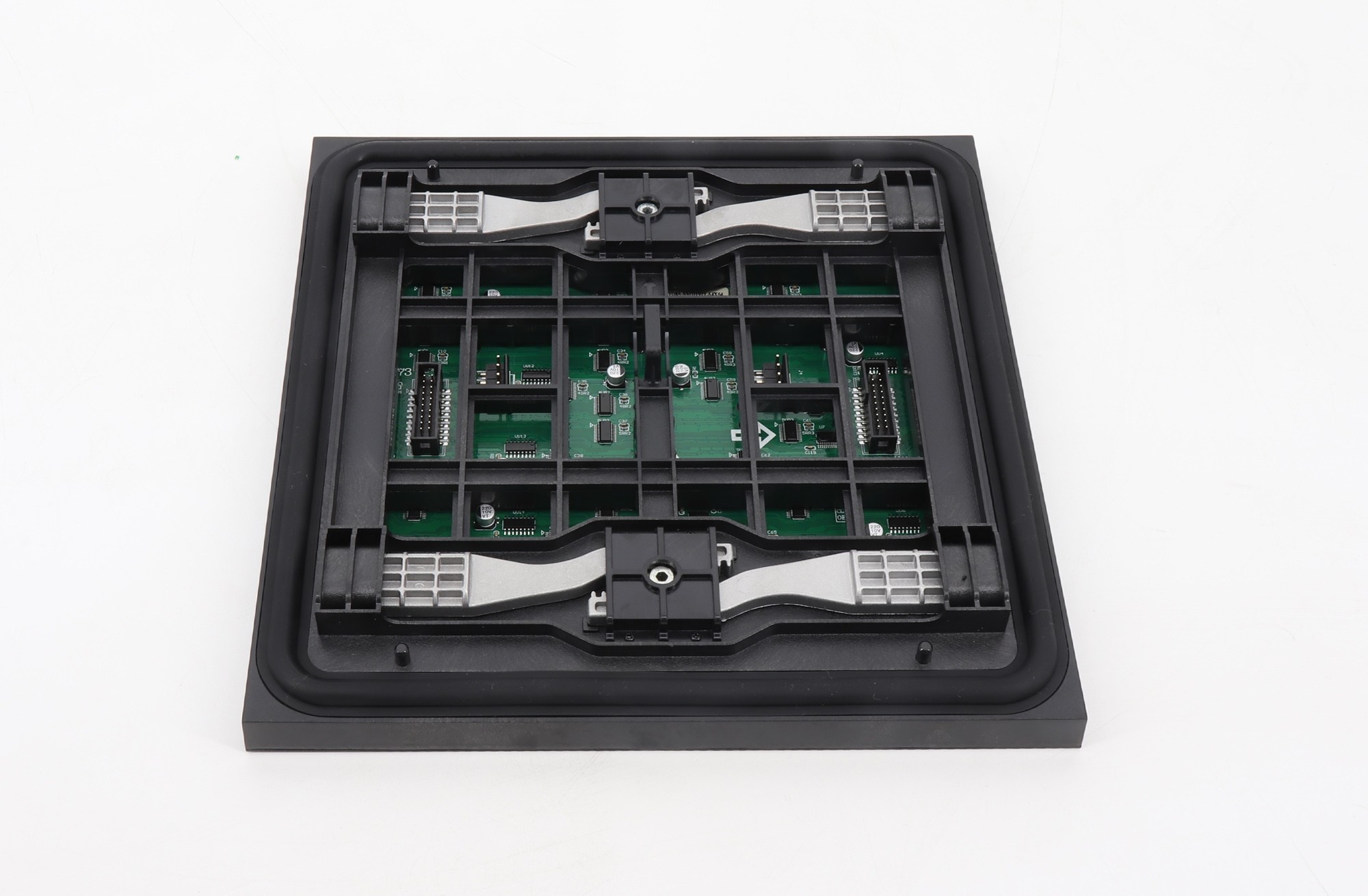

1) Dual-maintenance, from both the front side and the rear side. People usually use its front maintenance function.

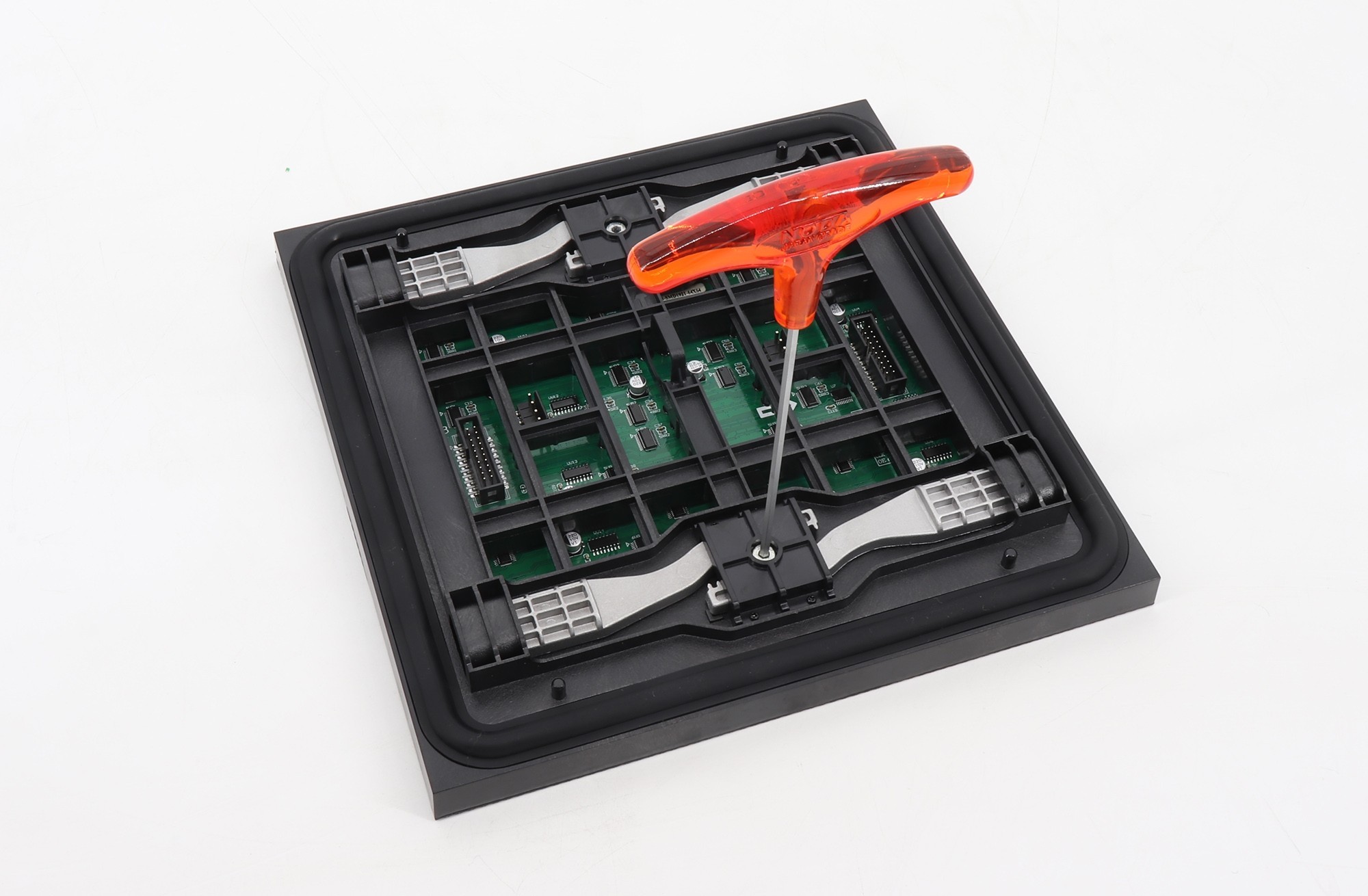

2) Easy maintenance, easy to take the modules with a hexagonal screwdriver.
3) No screws, easier to take the modules and mount the modules on the cabinet.
4) 3.91mm pixel pitch with SMD, perfect solution for semi-outdoor advertising LED screen and outdoor rental LED screen.
5) New plastic cover with new mold, smaller module gaps and better screen flatness.
6) Reasonable PCB design, reliable and long life time.

Applicable situations of P3.91 Outdoor 250x250 Dual Maintenance LED Display Module:
Outdoor LED signs requiring front maintenance
Commercial video screens with small sizes
Double face LED signs
Small LED banner signs
Outdoor rental LED screen requiring fast maintenance

Parameters of P3.91 Outdoor 250x250 Dual Maintenance LED Display Module:

Module Parameter
Pixel Pitch		3.91mm
Pixel Configuration		SMD1921
Density		65,536 pixels/㎡
Module Resolution		64pixel(L) *64pixel(H)
Module Dimension		250mm(L) * 250mm(H) * 18mm(D)
Driving Mode		Constant current, 1/8 duty
Module Mask		Pure black mask---high contrast screen
Electricity Parameter
Optical Ratings
Brightness		≥6,500 cd/㎡
Viewing Angle		120°(Horizontal); 120°(Vertical)
Best Viewing Distance		≥4m
Gray Grade		14 bits
Display Color		4.4 trillion colors
Brightness Adjustment		100 grades by software or automatically by sensor
Max. Power Consumption		40 W
Control System
Frame Frequency		≥60Hz
Refresh Frequency		≥1920Hz
Input Signal		Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance		100M (Ethernet cable);
		20KM (Optical fiber cable)
Support VGA Mode		800600, 1024768, 12801024, 16001200
Color Temperature		5000—9300 adjustable
Brightness Correction		Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature		-20～+60 ºC
Storage Temperature		-30～+70 ºC
Working Humidity		10%～90% RH
Lifetime		100,000 hours
MTBF		5000 hours
Continuous Operating Time		≥72 hours
Protection Grade		IP65
Out-of-Control Pixel Rate		≤0.01%
