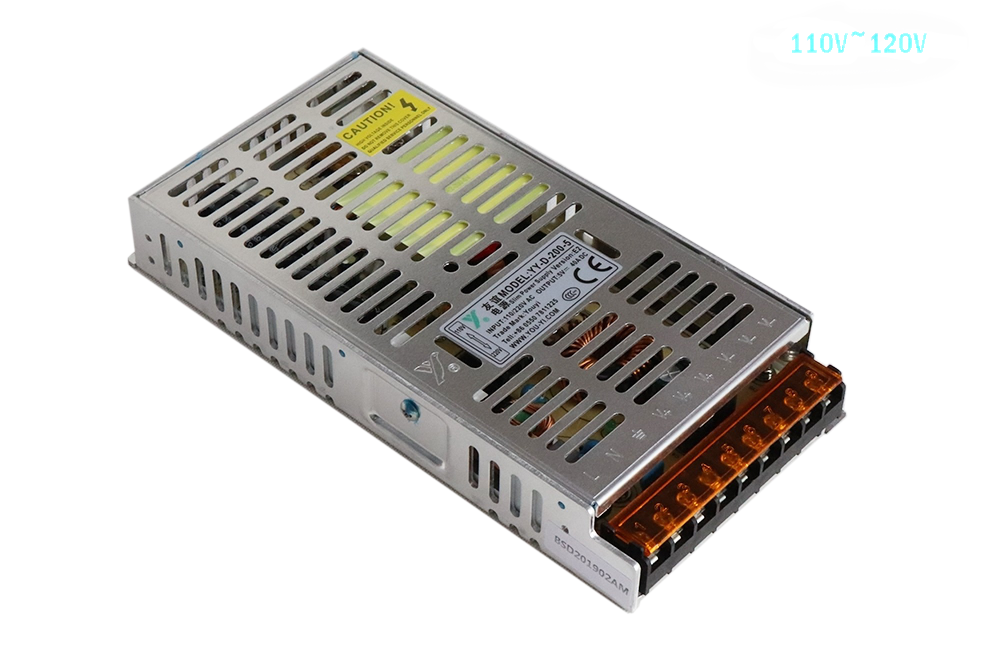

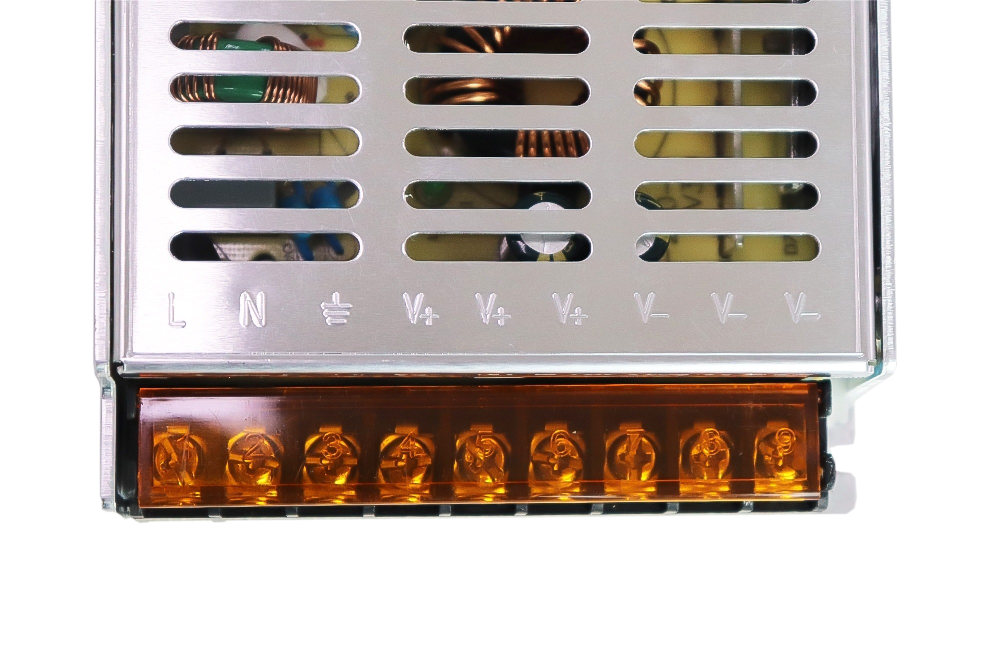

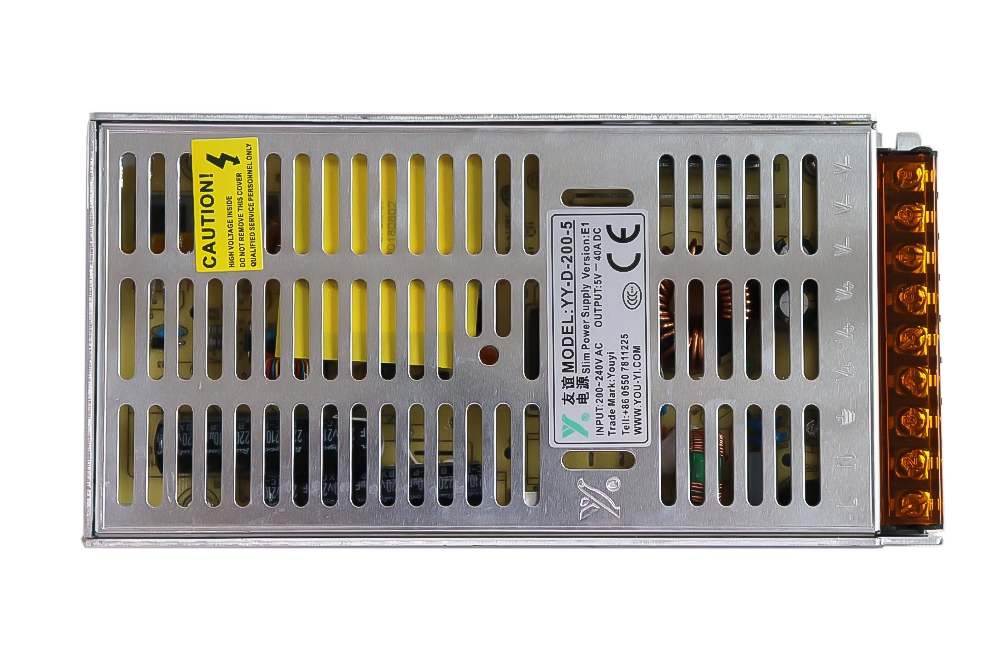

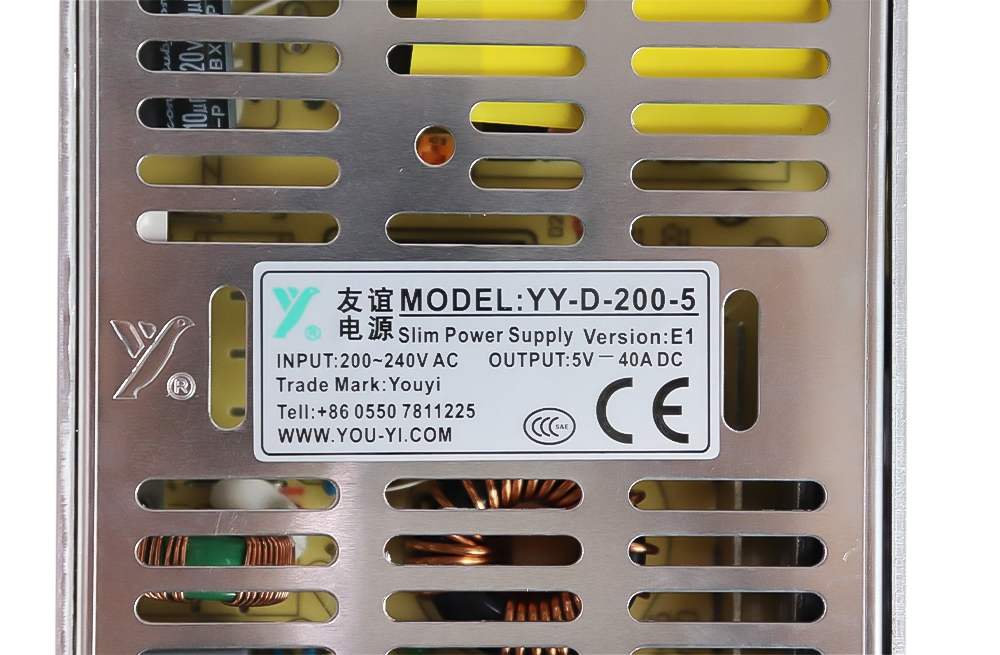

Youyi YY-D-200-5 5V40A 200W LED Power Supply Features:

1. Use MOS transistors instead of Schottky diodes, MOS low resistance state characteristics, can greatly improve efficiency, reduce losses and heat, to extend power supply life.
2. Provide overvoltage protection, overcurrent protection, short circuit protection, overload protection. When the protection mechanism is triggered, the power is automatically turned off, and after the fault is removed, the power supply is resumed.

Youyi YY-D-200-5 5V40A 200W LED Power Supply Parameter:

Model		YY-D-200-5 V:G
Output	Output Voltage	5V
	Max Current	40A
	Current Range	0～40A
	Max Power	200W
	Ripple and noise	≤100mV
	Voltage adjustment range	±1%
	Voltage tolerance	±1%
	Linear adjustment rate	±0.5%
	Load regulation	±2.0%
	Start Time	50mS
	Hold time	20mS
Input	voltage range	100V~130V / 200V～240V
	Frequency Range	47Hz～63Hz
	Effectiveness	88%
	Inrush current	≤40A
	Leakage current	≤2.0mA
Protection	Input undervoltage	150V～170V
	Input overvoltage	270V～280V
	Input overcurrent	4A
	Output overvoltage	5.75V～7.5V(Self - recovery）
	Output current limit	61A～70A
	Over temperature	105℃±5℃
	Cooling mode	Fan forced cooling
Enviroment	Operating temperature	—30℃～+60℃
	Working humidity	20～90%RH,No condensation
	Storage temperature, humidity	—40℃～+80℃,10～95%RH
	Temperature Coefficient	±0.03%/℃（0～50℃）
	Resistant to vibration	10-300MHz,1G,10Minute / period,
	Resistant to vibration	X.Y.Z axis for 60 minutes each.
Safity	Safety Standard	Accord to GB4943、UL60950、EN60950
	EMC Standard	Accord to GB9254、EN55022A
	Pressure resistance	I/P-O/P:3KVAC/3mA/1min
		I/P-FG:1.5KVAC/3mA/1min
		O/P-FG:0.5KVAC/3mA/1min
	Isolation resistance	I/P-O/P:100MΩmin/500VDC
	Certified	CQC/ CE/ CB/ ROHS/CCC
Other	Dimensions	2106231mm
